Safety Ratings Information

After the FORD FOCUS model were conducted the four TNCAP impact tests, the results are as follows:

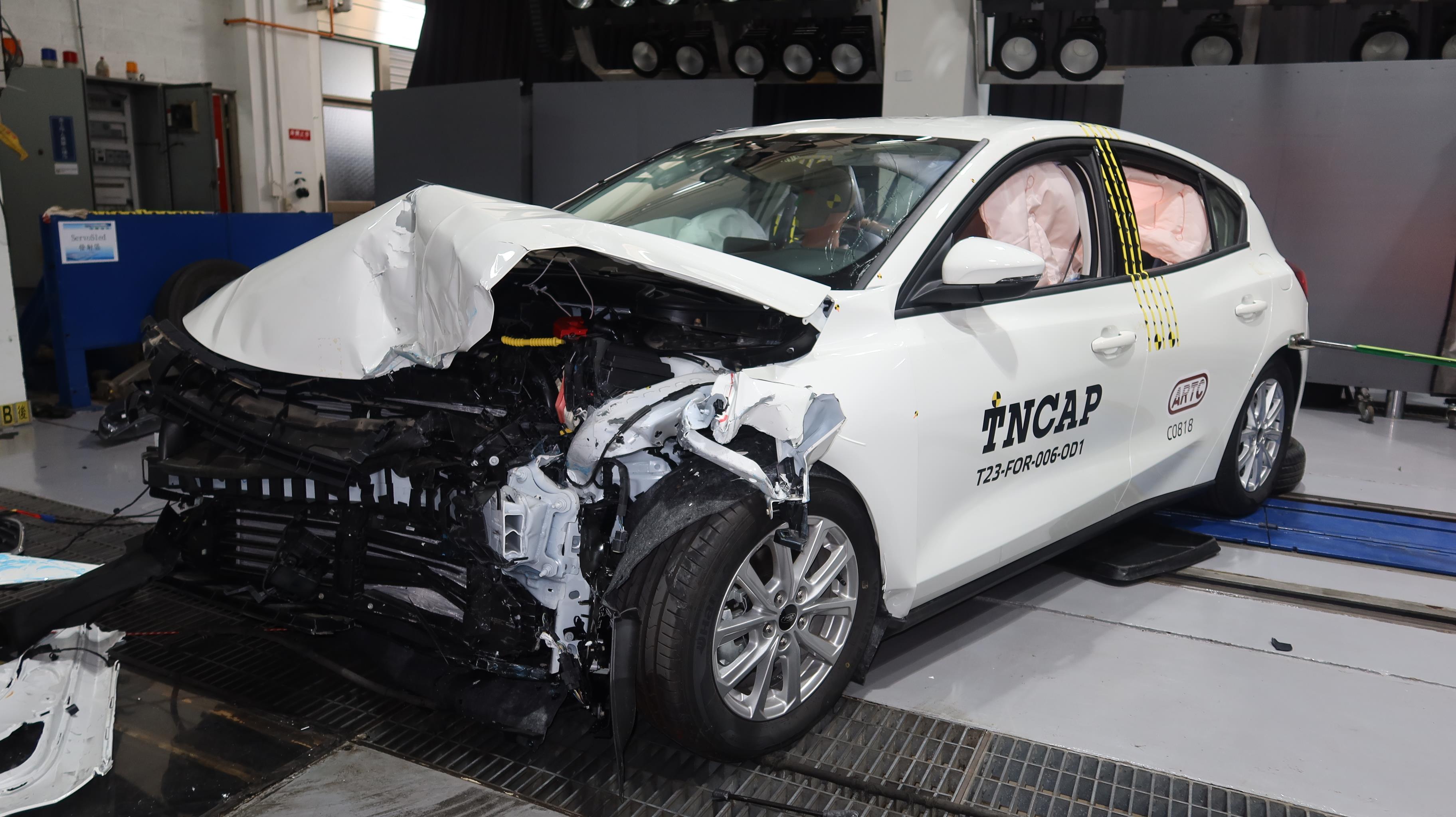

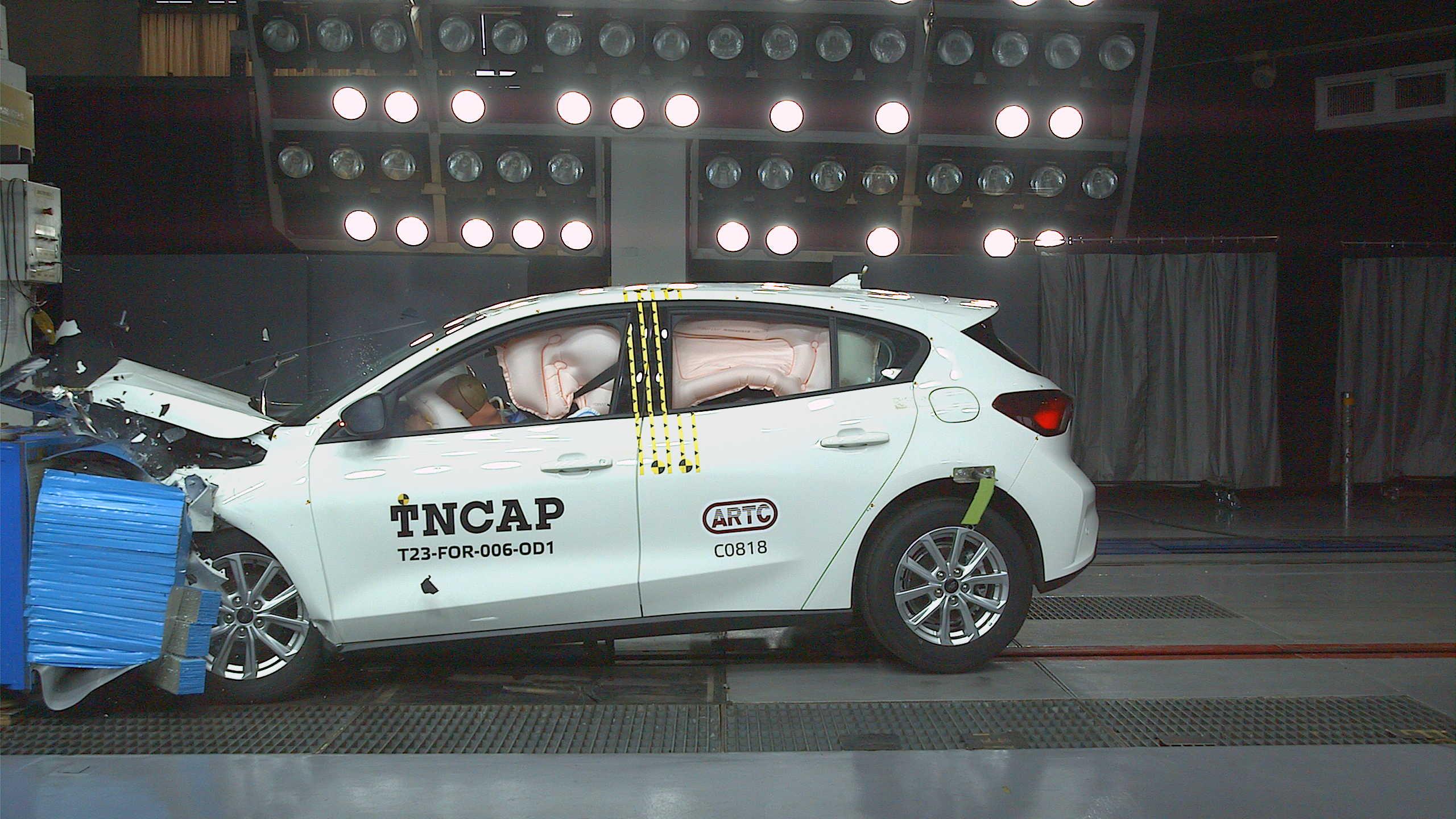

1.For “Offset Deformable Barrier Frontal Impact Tests”, the driver and passenger have "Good" or "Adequate" protection in body parts. However, there is a rupture in the driver's footwell after the collision, which may cause serious injury to the feet, so points were deducted.

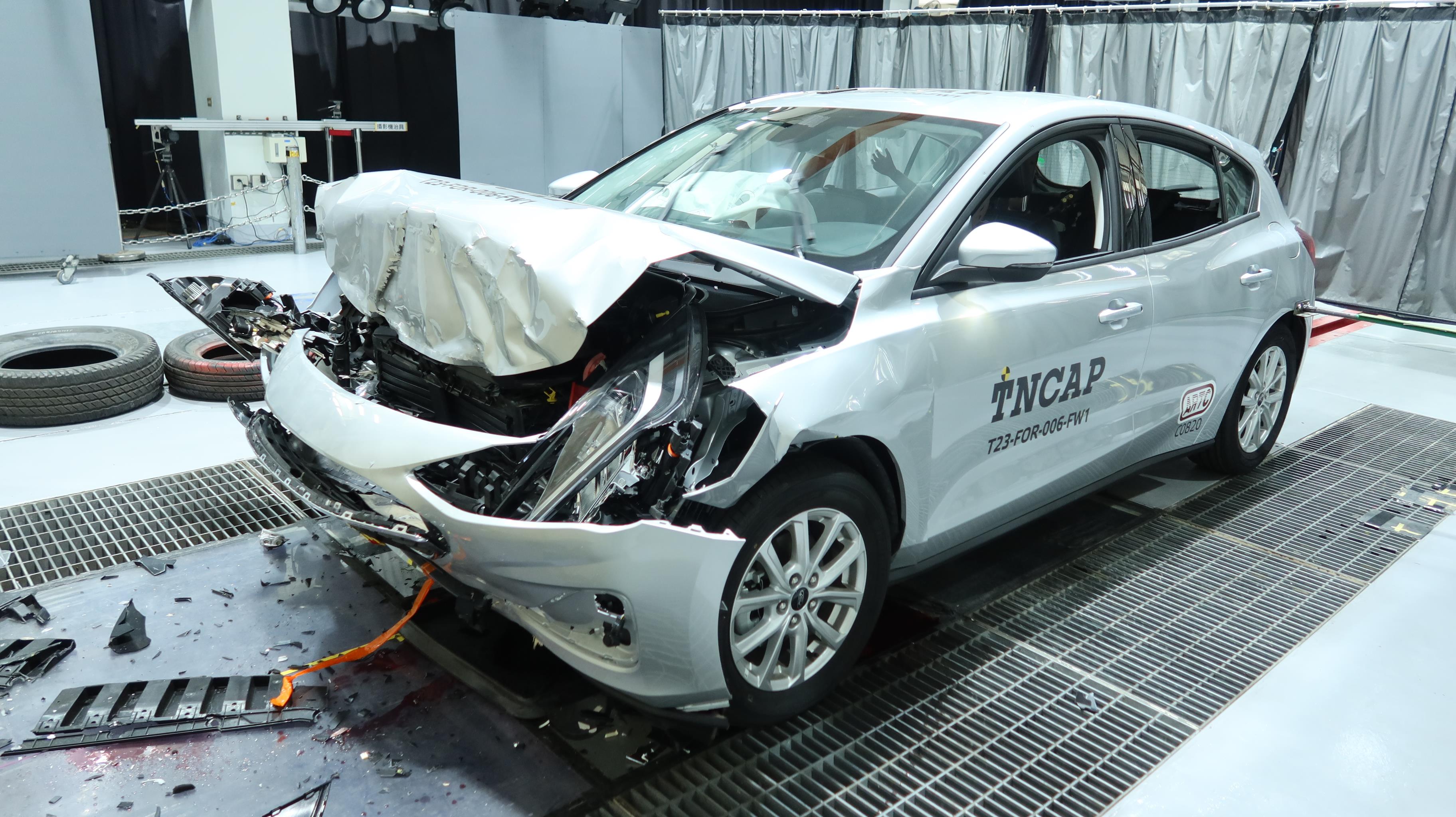

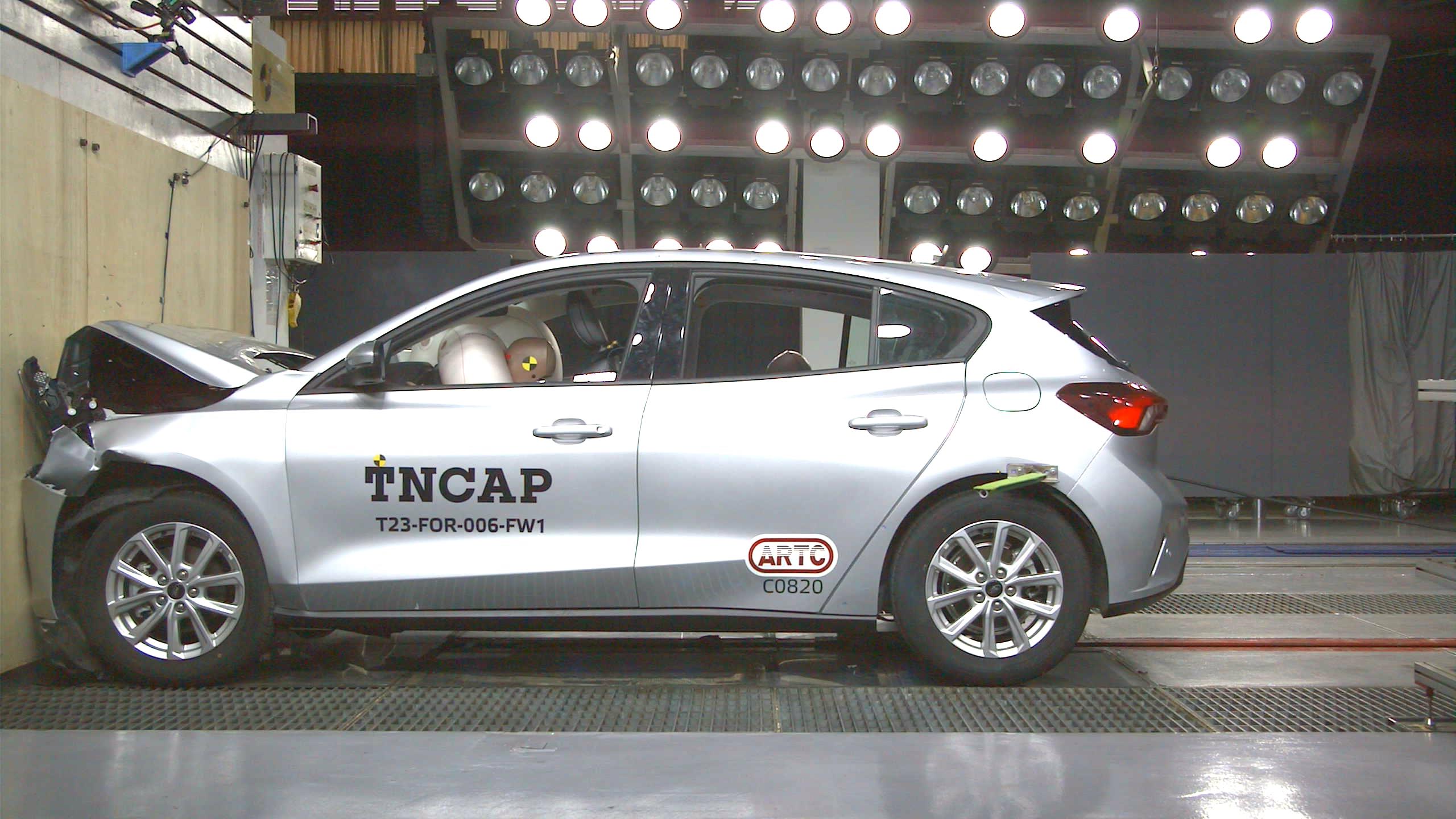

2.For “Full Width Frontal Impact Tests”, the important body parts have "Good" or "Adequate" protection in body parts.

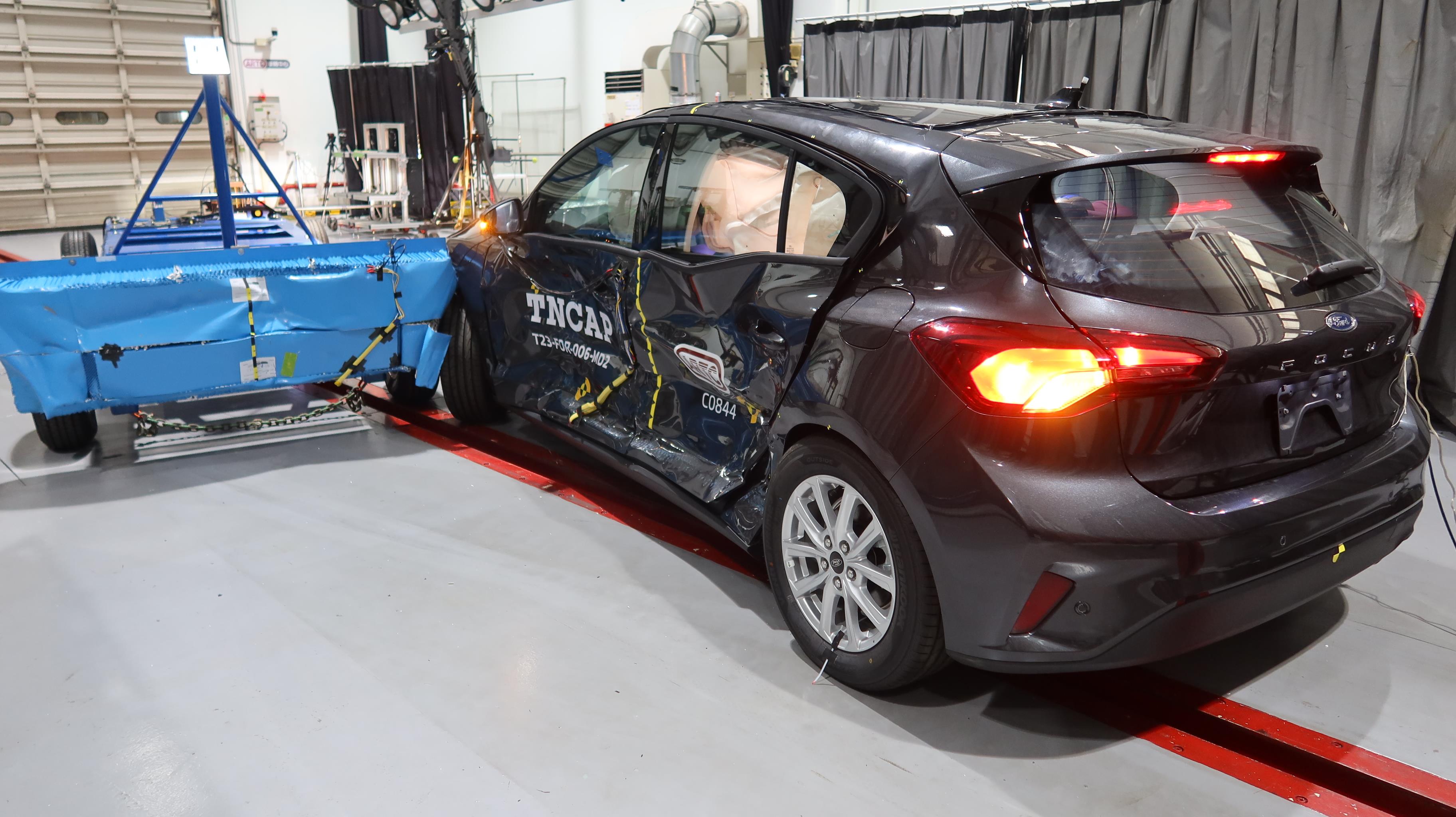

3.For “Side Impact Mobile Deformable Barrier Tests”, all important body parts have "Good" protection and get full points.

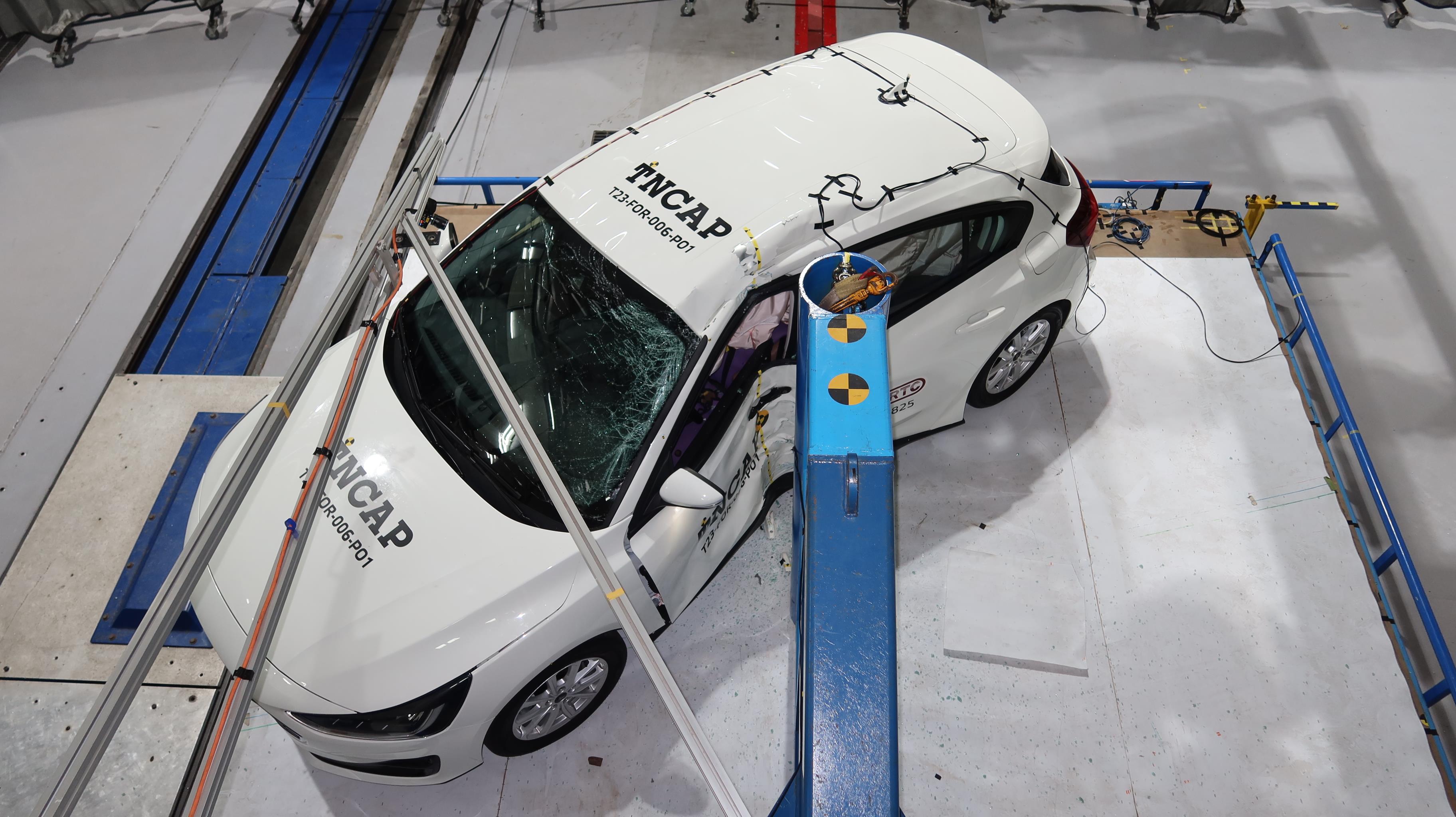

4.Under the more severe test conditions of the “Oblique Pole Side Impact Tests”, the important parts of the body have "Good" or "Adequate" protection.
In the front seat and rear seat whiplash tests, the front seat has "Good" protection for the occupant's neck, and the rear seat has "Marginal" protection for the occupant's neck.
This vehicle model has a standard-fit autonomous emergency braking system, which performed well with collisions avoided in all City test scenarios. Furthermore, whiplash performance of front seat was rated "Good" protection. Therefore, the AEB City system gets full points.

Restraint for 6 year old child：Britax Römer KIDFIX i-Size
Restraint for 10 year old child：Britax Römer KIDFIX i-Size

• Fitted to the vehicle as standard
• Not fitted to the test vehicle but available as option
• Not Available
• Not Applicable

• Install without problem
• Install with care
• Safety critical problem
• Installation not allowed
• Not Applicable

After the FORD FOCUS model were conducted “Offset Deformable Barrier Frontal Impact Tests”, for 6-year-old and 10-year-old children of crash performance, the important body parts of the child dummy in the car have "Good" or "Adequate" protection. After “Side Impact Mobile Deformable Barrier Tests”, the important body parts of the child dummy in the car was rated as "Good" protection and gets full points.
The car owner's manual clearly records the information on child restraint system applicable to the rear seat. The rear seat can be correctly installed with all types of child restraint system (universal, ISOFIX and i-Size) after being tested. Vehicle manufacturer recommends suitable child restraint system information for different age groups. Besides, the vehicle is equipped with the function of installing i-Size child restraint system on the left and right seats of the second row with i-Size labels, it could also accommodate larger rear-facing child restraint system.

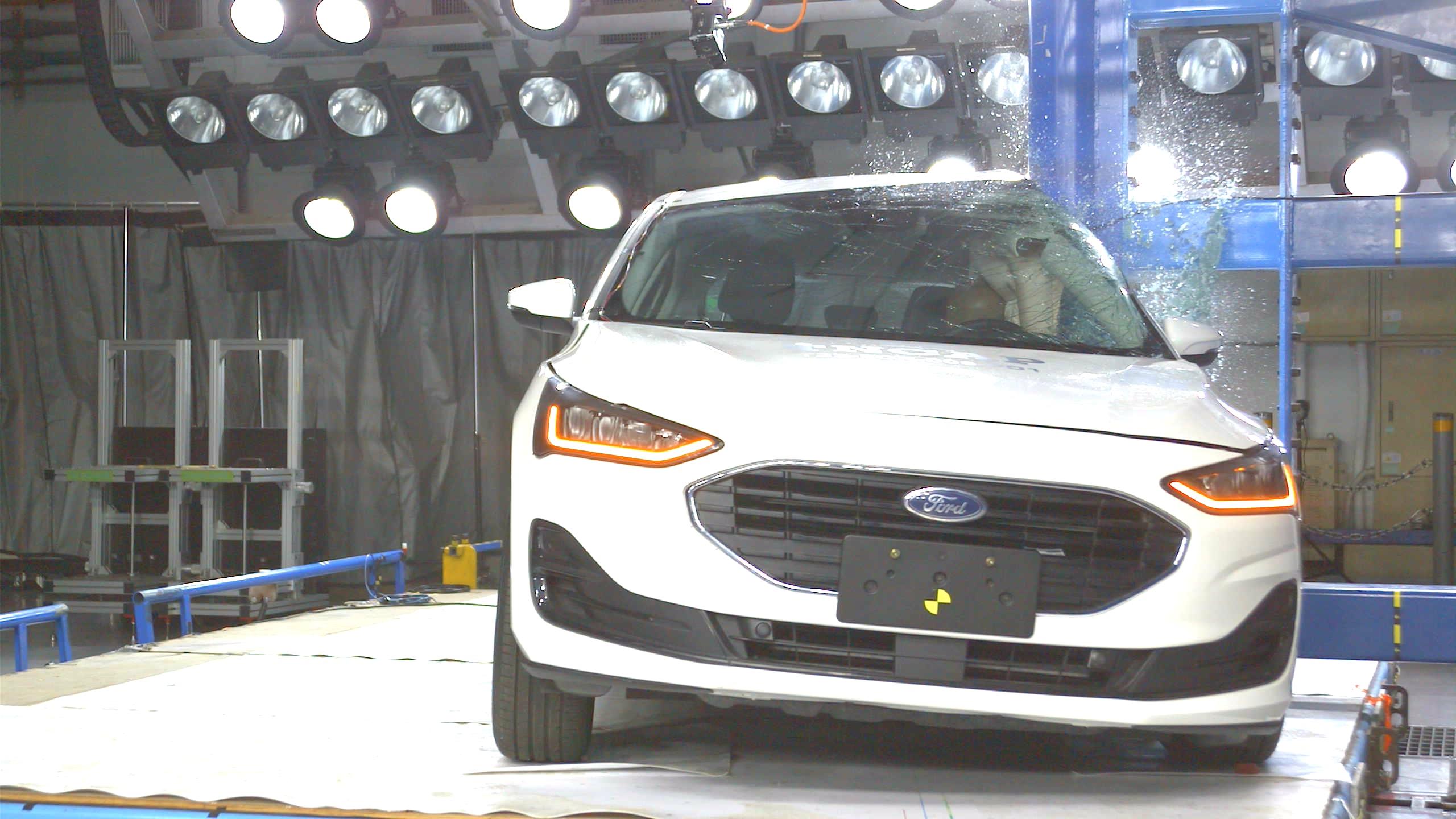

After the FORD FOCUS model were conducted Headform Impact Tests of pedestrian protection tests, which impacts at vehicle's A-pillar and its adjacent areas of the windshield, the head protection performance was rated as "Weak" or "Poor", and the rest of the hood has rated as "Good" or "Adequate" protection. After the pelvis impact test and leg impact test, the front bumper of the vehicle was rated as "Good" protection on the pedestrian's pelvis and legs and gets full points.
This vehicle model has a standard-fit autonomous emergency braking system. In vulnerable road user test scenarios, all the functions of human machine interface meet the protocol and 4 test results are as below:
1.Car-to-VRU Farside Adult (50%) tests, collisions occurred at 55km/h to 60km/h, but the system can mitigate the degree of injury.
2.Car-to-VRU Nearside Adult (25%) tests, collisions occurred at 50km/h to 60km/h, but the system can mitigate the degree of injury.
3.Car-to-VRU Nearside Adult (75%) tests, the system performed well to avoid all collisions at 20km/h to 60km/h.
4.Car-to-VRU Nearside Child (50%) tests, collisions occurred at 45km/h to 60km/h, but the system can mitigate the degree of injury.

• Not Applicable

• Pass
• Fail
• Not available

• Not Applicable

FORD FOCUS has a standard-fit speed assistance system, the speed limit information can be shown all the time, but it cannot recognize the traffic signs for time, weather, and vehicle category. When the vehicle speed exceeds the speed limit of the road, the system can effectively warn the driver by audiovisual warning, and can stably maintain the actual vehicle speed within 5km/h of the traffic speed limit.
Both the front and rear seats are equipped with standard-fit seatbelt reminder, the system can detect occupant of front passenger seat, which effectively alerts driver through audiovisual warnings. Therefore, the system gets full points.
When the vehicle drifts from the driving lane, the lane support system can alert and automatically intervene to correct the driving direction to the original driving path. However, part of functions of human machine interface do not meet the protocol.
The vehicle model is equipped with a standard-fit autonomous emergency braking system, which is rated as "Good" protection in high-speed performance tests. However, part of functions of human machine interface do not meet the protocol. 3 test results are as below:
1.Car-to-Car Rear Stationary (CCRs) of FCW tests, collision occurred at 55km/h to 80km/h, but the system can mitigate the degree of injury.
2.Car-to-Car Rear Moving (CCRm) of AEB tests, collision occurred at 70km/h, but the system can mitigate the degree of injury.
3.Car-to-Car Rear Braking (CCRb) of AEB tests, collision occurred at 12m headway, 2m/s2 deceleration, but the system can mitigate the degree of injury.
