Safety Ratings Information

1. After TOYOTA VIOS model were conducted four TNCAP impact tests, the results are as follows:

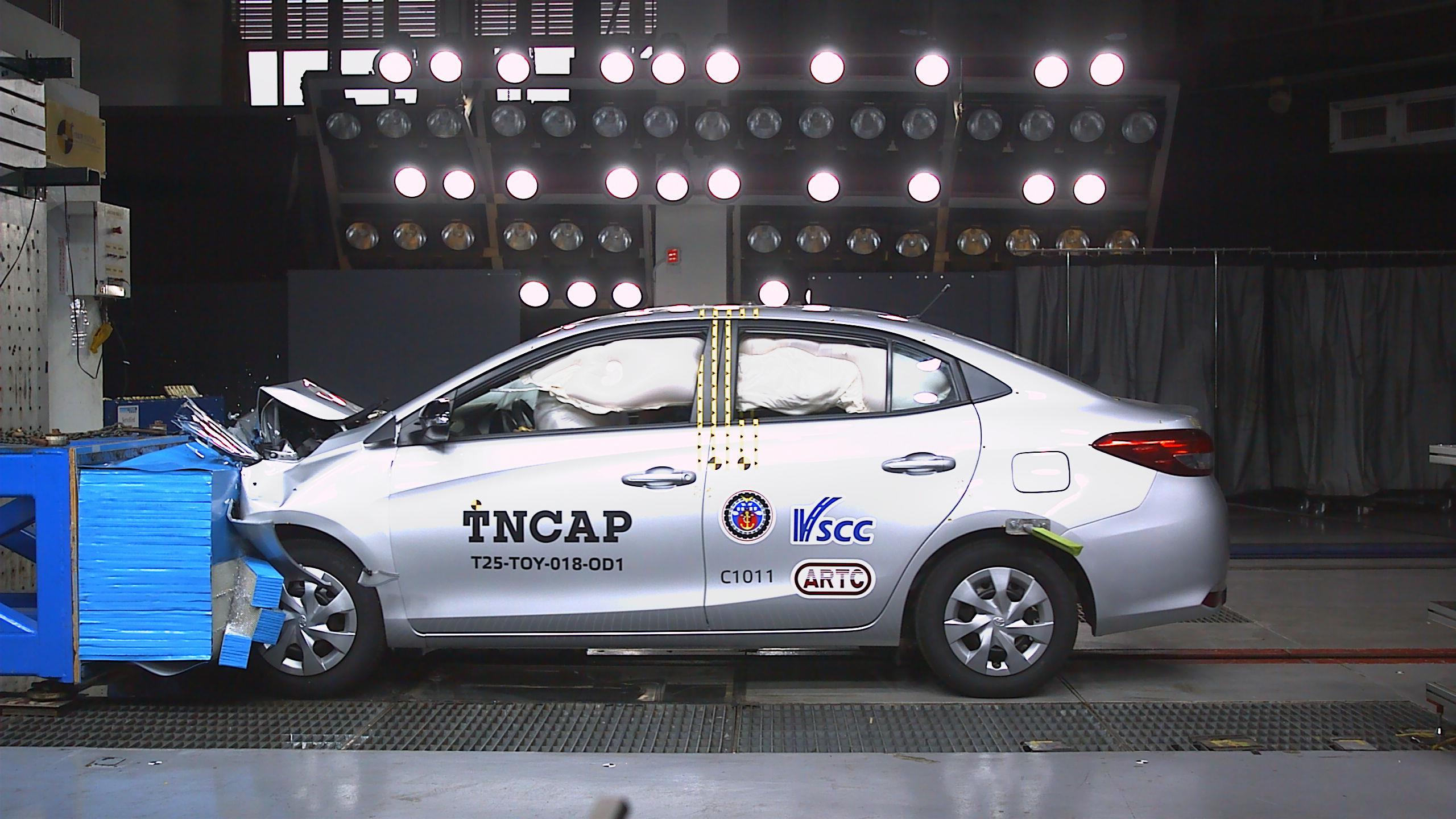

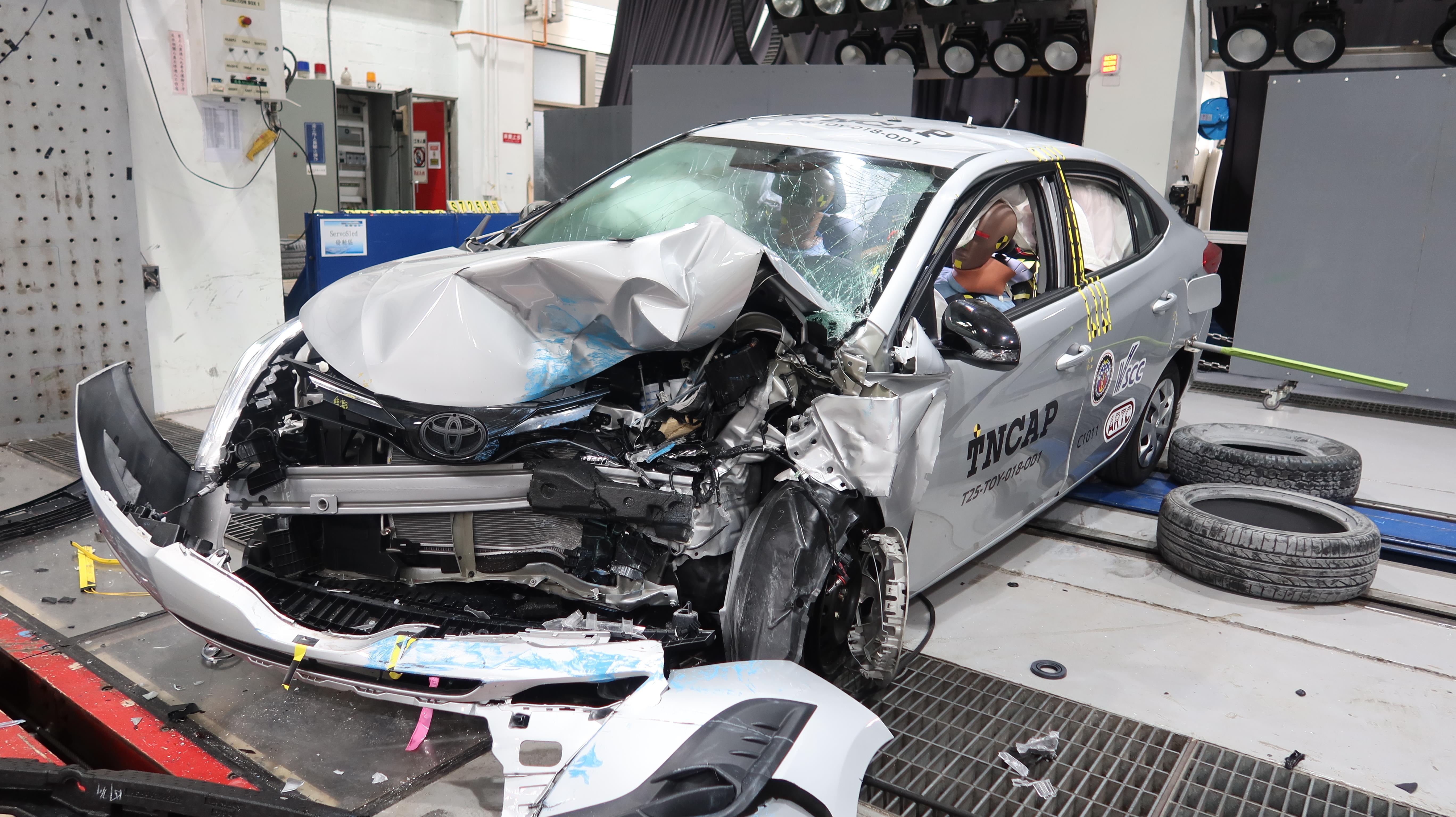

   (1)For "Offset Deformable Barrier Frontal Impact Tests", the driver and passengers have "Good" or "Adequate" protection in all body parts.

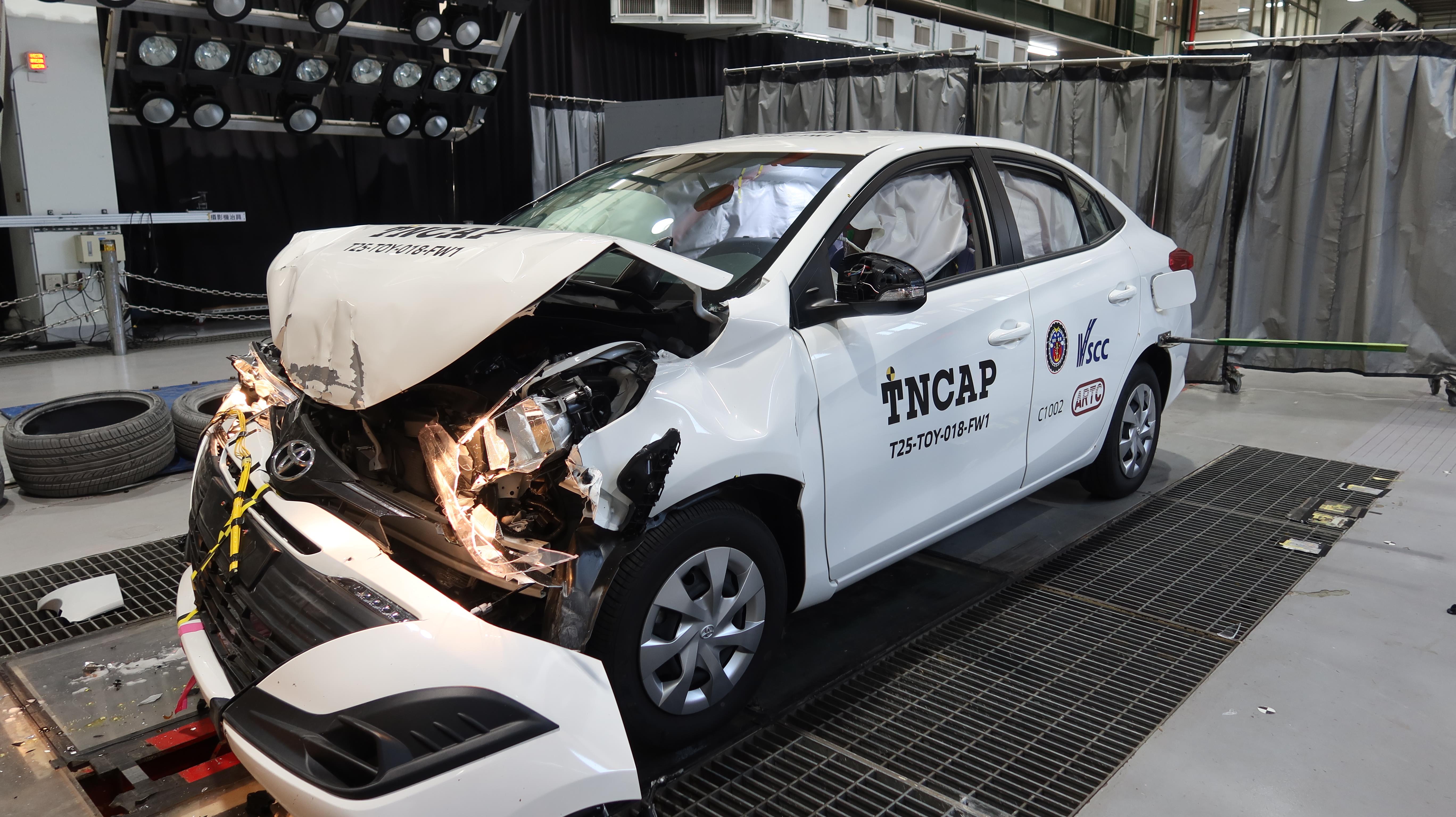

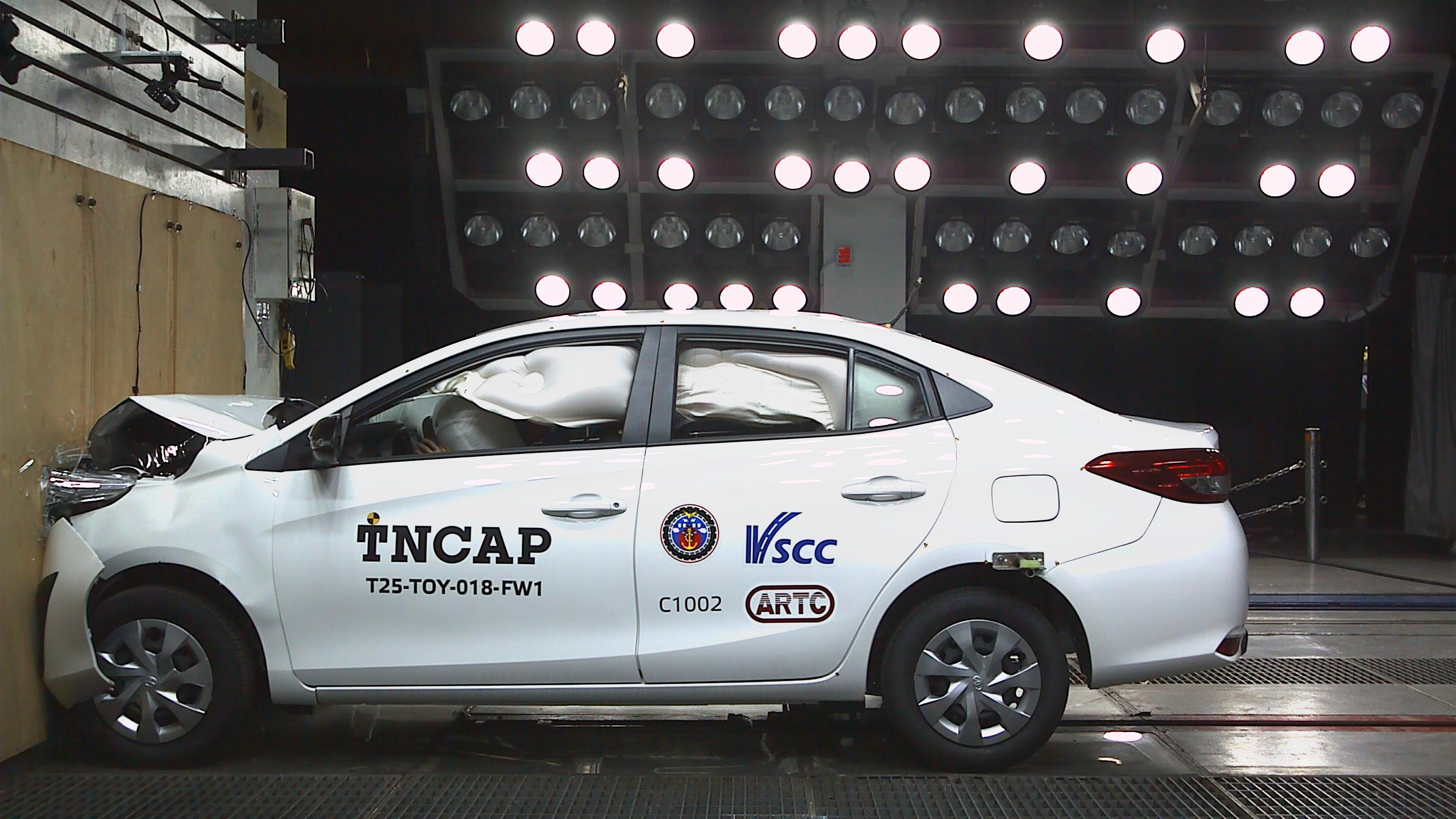

   (2)For "Full Width Frontal Impact Tests", the important body parts have "Good" or "Adequate" protection in body parts. However, server injury exceeding restriction limit on head and chest of rear passenger, therefore, it is rated as "poor" protection and no points were awarded for the dummy.

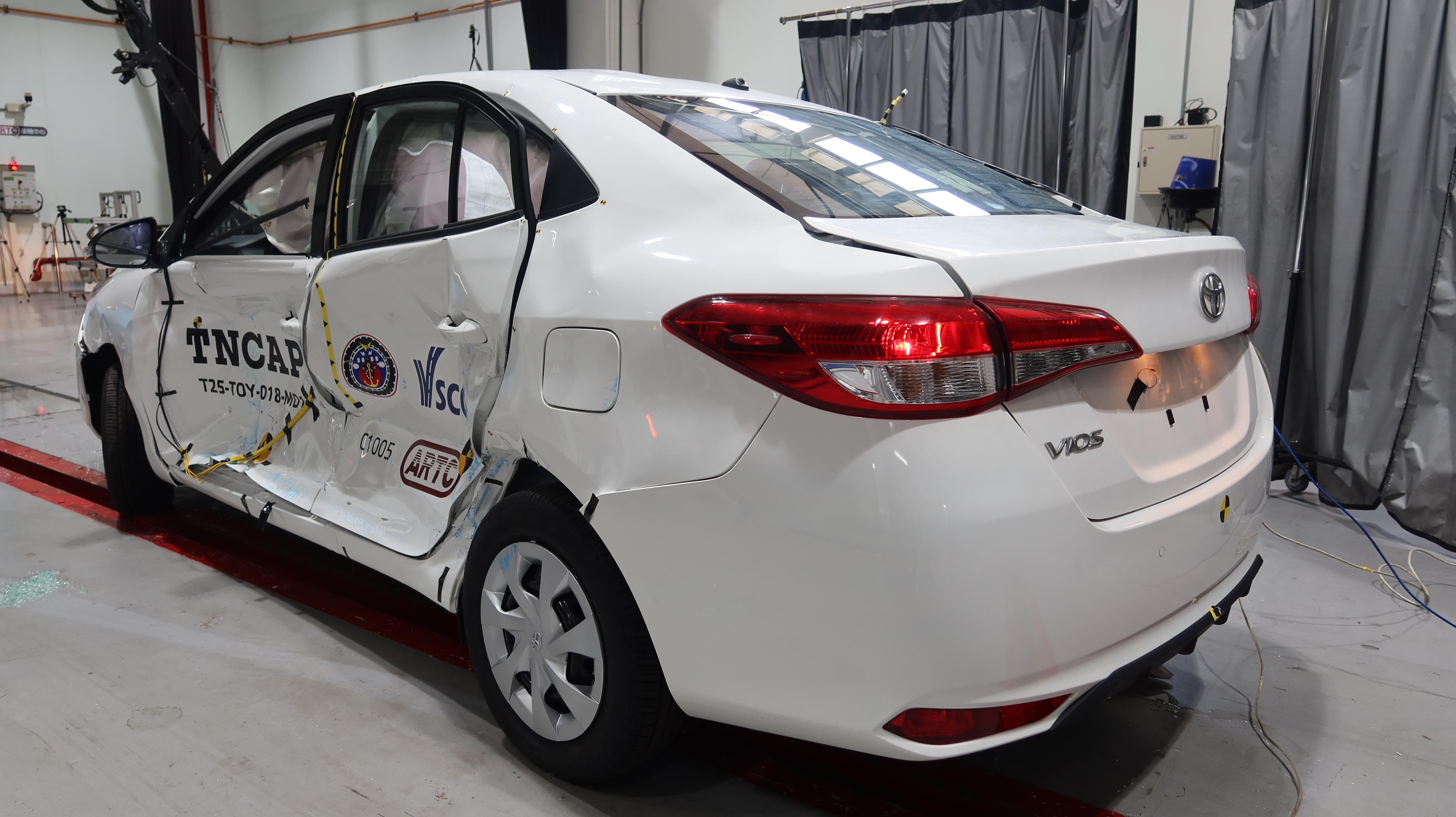

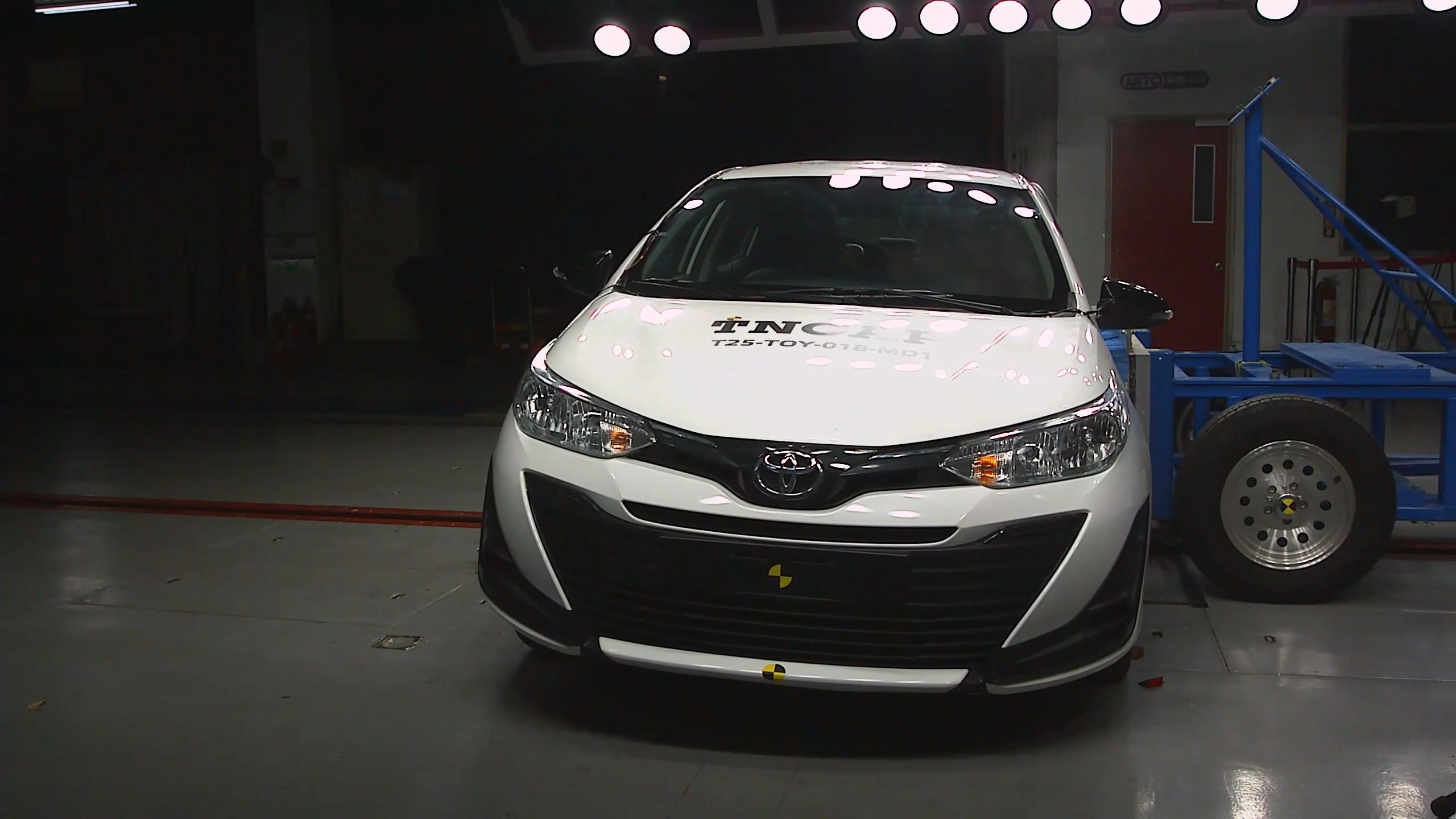

   (3)For "Side Impact Mobile Deformable Barrier Tests", important body parts have "Good" protection and get full points.

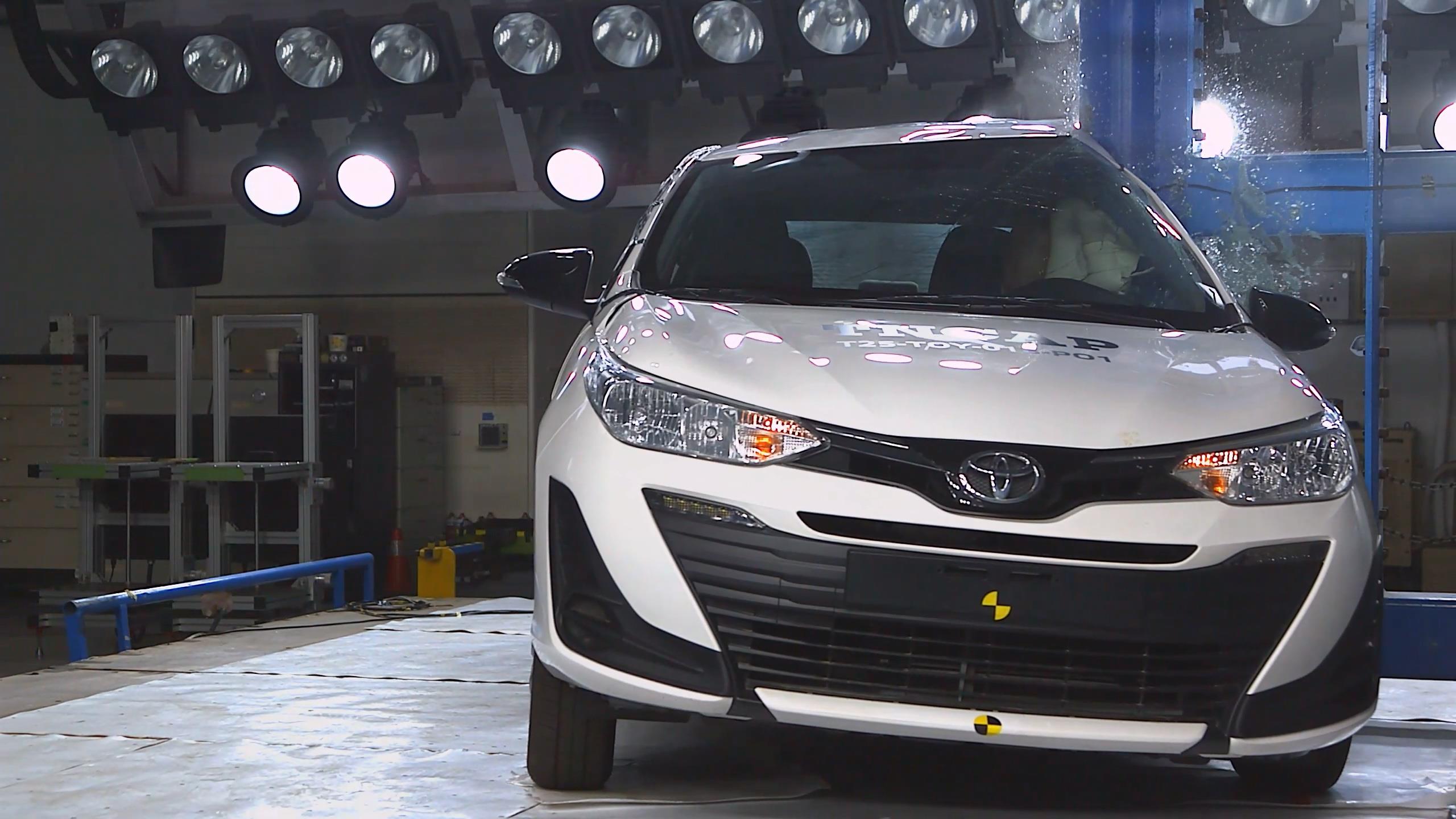

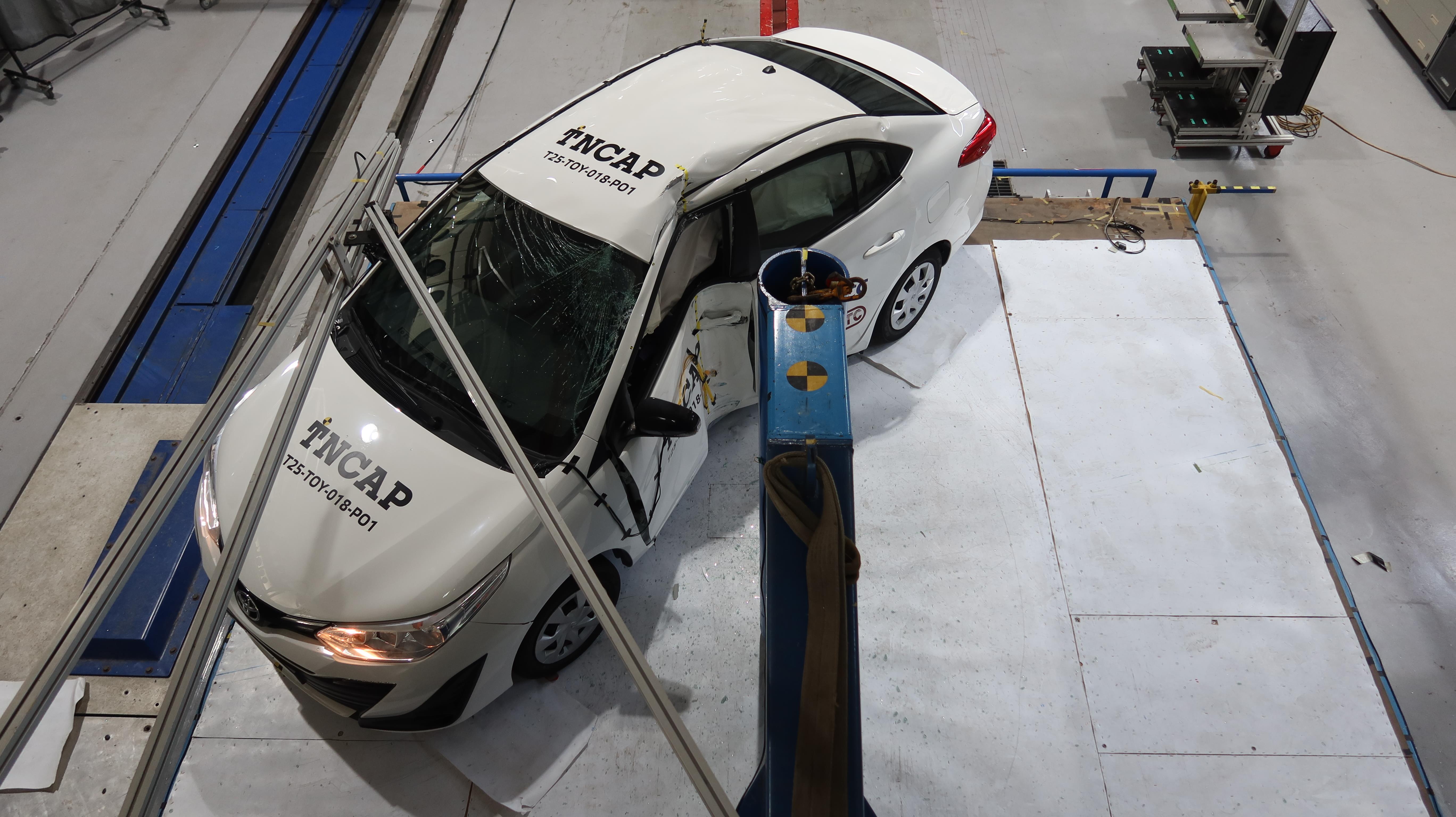

   (4)Under more severe test conditions of the "Oblique Pole Side Impact Tests", important body parts have "Good" protection. However, the side curtain airbag of this vehicle model does not provide enough protection for the front seat passengers, so points were deducted.


2. In the front seat and rear seat whiplash tests, the front seat and rear seat have "Good" protection for the occupant's neck.


3. The vehicle variant under test is not equipped with an AEB City system, therefore no points were awarded for this item.

Restraint for 6 year old child：TOYOTA JUNIOR SEAT 2
Restraint for 10 year old child：TOYOTA JUNIOR SEAT 2

• Fitted to the vehicle as standard
• Not fitted to the test vehicle but available as option
• Not Available
• Not Applicable

• Install without problem
• Install with care
• Safety critical problem
• Installation not allowed
• Not Applicable

1. After TOYOTA VIOS model were conducted impact tests for the 6-year-old and 10-year-old child dummies, the results are as follows:
   (1)For "Offset Deformable Barrier Frontal Impact Tests", the neck of the 6-year-old child dummy was rated as "Marginal" protection, however, the chest bears bigger force, which was rated as "Weak" protection. The neck of the 10-year-old child dummy bears too big force, which was rated as "Poor" protection.
   (2)For "Side Impact Mobile Deformable Barrier Tests", all important body parts have "Good" protection and get full points.


2. The car owner's manual clearly records the information on child restraint system applicable to the rear seat. Only the outer seats can be correctly installed with all types of child restraint system (universal, ISOFIX and i-Size) after being tested. Vehicle manufacturer recommends suitable child restraint system information for different age groups. Besides, the vehicle is equipped with the function of installing i-Size child restraint system on the left and right seats of the second row with i-Size labels.

1. After TOYOTA VIOS model were conducted headform impact tests of pedestrian protection tests, as the headform impacts at vehicle's A-pillar and its adjacent areas of the windshield, the head protection performance was rated as "Weak" or "Poor", and the rest of the hood areas were rated as "Adequate" or "Marginal" protection. For the pelvis and leg impact test, the front structure of vehicle was rated as "Good" protection on the pedestrian's pelvis and legs and gets full points.


2. The vehicle variant under test is not equipped with an AEB VRU system, therefore no points were awarded for this item.

• Pass
• Fail
• Not available

1. All vehicle variants of TOYOTA VIOS are not equipped with speed assist system, and the vehicle variant under test is not equipped with lane support system and AEB Inter-Urban system. Therefore, no points were awarded for these 3 items.


2. Both front and rear seats are equipped with a standard-fit seatbelt reminder, the system can detect occupant of front passenger seat, which effectively alerts driver through audiovisual warnings. Therefore, the system gets full points.
